eCAP-9450 Multifunction Capacitor Controller

Based upon QEI’s field proven 6ACP6 platform, the eCAP-9450 provides three-phase, single-phase, 3-step, or 2-step capacitor bank control in a cost effective package.

When equipped with a suitable serial or TCP/IP based communication channel, the eCAP-9450 provides SCADA functionality via DNP3 or other current or legacy protocol from the 6ACP6 library in order to smoothly integrate with your larger distribution management system.

CONFIGWIZ® 2.0, our configuration software module, provides a user-friendly, drag-and-drop Windows® Interface for intuitive configuration and faster training in order to get you up and running quickly.

The eCAP-9450 accepts voltage and current inputs from either line post sensors or PTs and CTs. Capacitor switching may be based on either voltage or kVAR, with a local voltage override option included, which has precedence over kVAR control. Neutral current detection is also present.

The +12VDC, 2.0A power supply provides power for both the 6ACP6 board itself and a user supplied radio. Six control relay outputs (each rated at 10A/250VAC) are arranged as 3 trip/close pairs for independent or ganged control of three cap bank switches. Front panel switches are included for Phases A,B,C open/close and auto/ manual, local/remote and lock-out.

Front panel LED indicators and multi-line readout are included for easy assessment of operation.

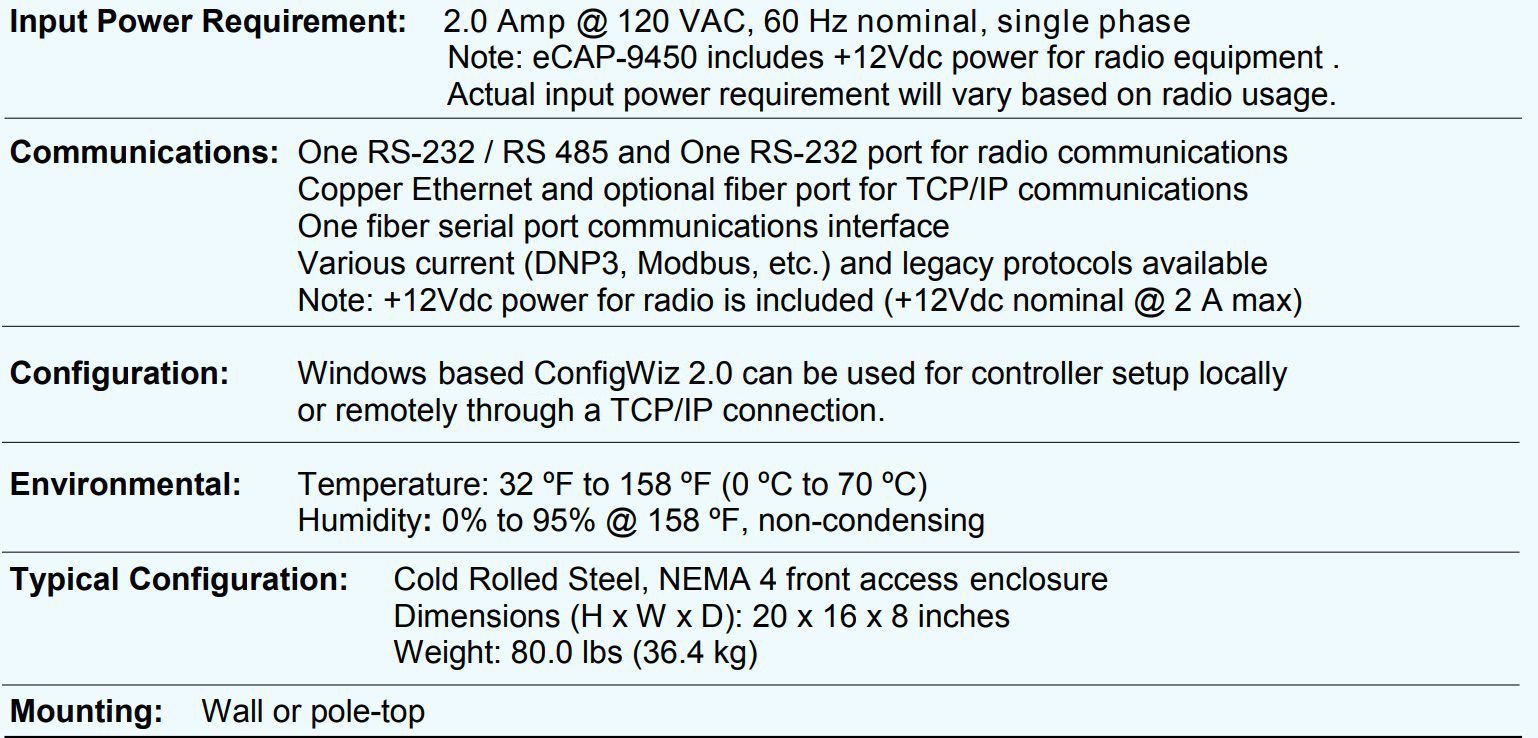

Controls & Indications

  • Front Panel Switch Control: A,B,C Phase A,B,C open/close, auto/manual, local/remote and lock- out. Multi-line LED readout and LED indicators for assessment of operation.
  • CommFail: Revert to automatic local control if communications to the SCADA master station fails
  • Auto Control: Fully automatic control based on internal user-defined switching algorithms
  • Lockout: Failure detected – control operations blocked until reset either locally or from the SCADA master station

Safety

  • Burnout protection blocks all switch operations until line voltage reaches an acceptable level
  • Hunting protection to prevent excessive operations (user defined)
  • Operation retry rate as well as the total number of attempts can be user limited
  • Programmable time interval & retries for detecting neutral fault conditions
