eXP-9435 Communication Port Expander

Expand Your Substation Data Concentrator and Provide Secure Access for Your Entire Enterprise

The eXP-9435 is a compact addition to your ePAQ-9410/9420/9425 Multifunction Gateway, which expands the number of serial or IP ports for access to additional devices or IEDs.

Housed in a 19” width enclosure with a 1U footprint, the eXP-9435 has rear access connections for convenient rack mounting. Serial communication ports may be accessed through rear panel fiber ST connectors or DB-9 connectors.

Convertible Communication Ports for Flexible Installations

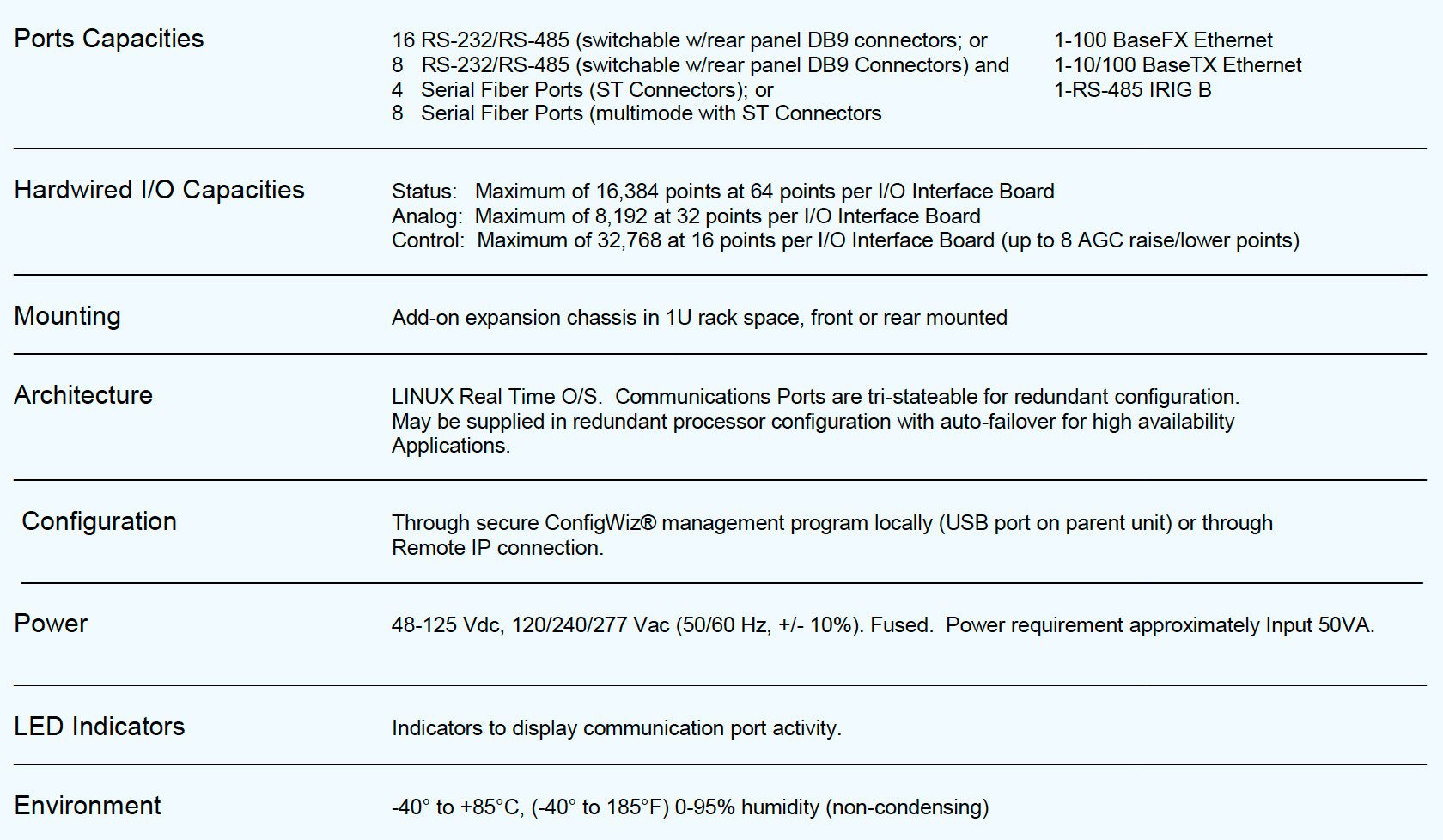

The eXP-9435 provides 16 additional ports which are convertible RS-232 or RS-485 and may be allocated on a per port basis. Optionally, these may be provided as eight serial fiber ports with eight ST (multimode) connectors, or as a mix of eight RS-232/485 ports and four fiber ports.

The 10/100 BaseTX connection is through a standard RJ-45 connection, with the 100 BaseFXinterface using standard ST fiber connectors.

  •  Expand your QEI Substation Platforms to additional Devices, Protocols and Communication Interfaces with a Convenient Modular Package
  • Ethernet 10/100 BaseTX and 100 BaseFX Ports for IP accessibility
  • Sixteen RS-232/RS-485 or eight Serial Fiber Ports for incorporating Future, Current or Legacy Devices
  • Serial Ports May be accessed through Rear Panel DB-9 or ST Fiber Connections
  • Works within your Substation plan to meet NERC-CIP and Cyber Security requirements
  • Quick and easy configuration with provided ConfigWiz® Windows Software
  • Front Panel LED Indicators for easy assessment of operation
  • IRIG-B Interface for System Time Synchronization
