MicroPAQ-940P Automation Gateway

Intended to be used in harsh environments and with standard protocols available, the MicroPAQ has a wide range of applications in the electric, water, wastewater and gas industries:

  • Generator monitoring and control
  • Regulator monitoring
  • Transformer monitoring
  • Gas Pressure monitoring
  • Water pump monitoring and control
  • Water tank level monitoring
  • Water pressure monitoring
  • Small RTUs

The MicroPAQ is configured through provided ConfigWiz® Windows Software. Streamlined navigation, drag-and-drop functionality, IED Libraries and on-board tutorials provide for the easiest configuration tools for quick and easy configuration.

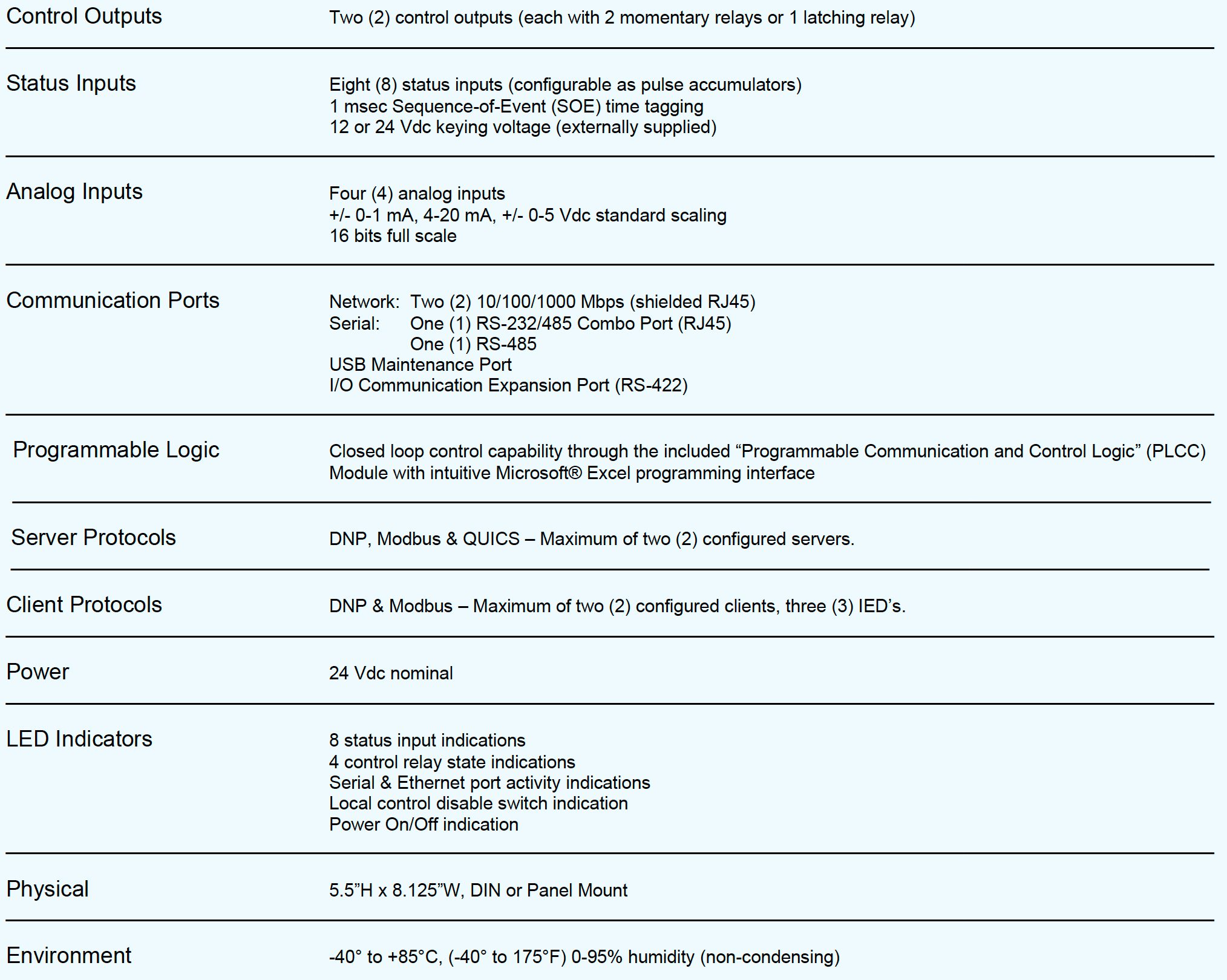

  • Module Inputs / Outputs:
    • Four (4) Analog Inputs
    • Eight (8) Status Inputs
    • Two (2) Control Outputs
  • Easy modular expansion for Additional hardware I/O points:
    • Status: MicroPAQ-940S with 16 Isolated Status Inputs
    • Analog AC: MicroPAQ-940AC with 3 AC Voltage Inputs (PT), 3 AC Current Inputs (CT) and 1 DC Input
    • Analog DC: MicroPAQ-940DC with 8 DC Analog Inputs
    • Control: MicroPAQ-940R with 4 Control Points
  • Real-time Clock with Supercap backup
  • Field proven protocols
  • Closed Loop Control (CLC)
  • Configuration through provided ConfigWiz 2.0®
  • Front Panel LED Indicators
  • Closed Loop Control (CLC) Programmable

With the explosion of smart devices in the substation, there is a pressing need for a tool which is up to the task of integrating Intelligent Electronic Devices (IEDs) and managing an evolving communication and cybersecurity environment.

CONFIGWIZ 2.0 has been designed specifically for easier IED integration and management and special emphasis has been given to the operator interface in order to make this process as intuitive as possible.  To this end, we introduce eZ-mode.

MicroPAQ-940P – Expansion Modules

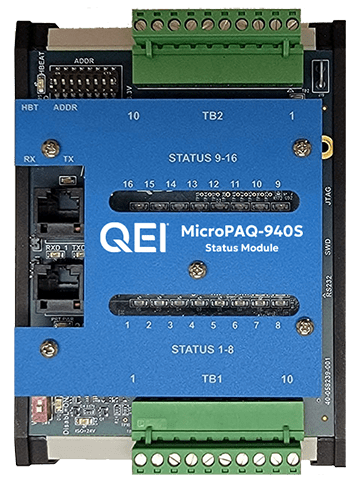

MicroPAQ-940S

Status Expansion Module

The MicroPAQ-940S is a microprocessor-controlled expansion module for the MicroPAQ-940P and ePAQ-9410/20, providing sixteen additional digital inputs (status points).

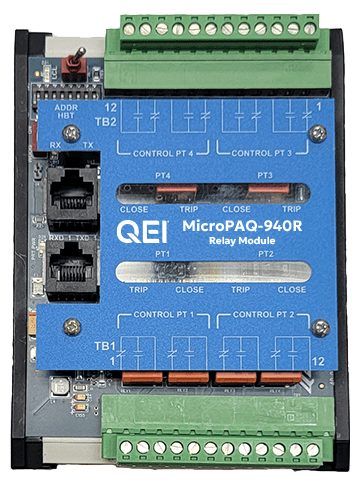

MicroPAQ-940R

Control Output Module

The MicroPAQ-940R is a microprocessor-controlled expansion module for the MicroPAQ-940P and ePAQ-9410/20, providing up to eight momentary or four latching relay outputs (four control points).

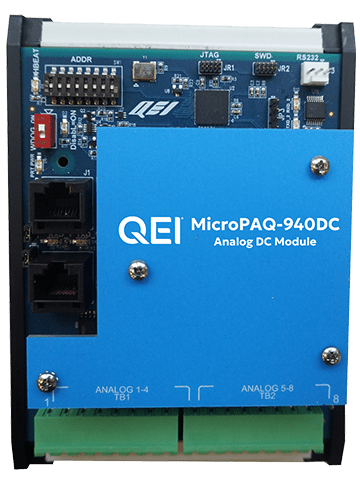

MicroPAQ-940DC

Analog DC Module

The MicroPAQ-940DC is a microprocessor-controlled expansion module for the MicroPAQ-940P and ePAQ-9410/20/25, providing up to eight DC Analog Inputs.

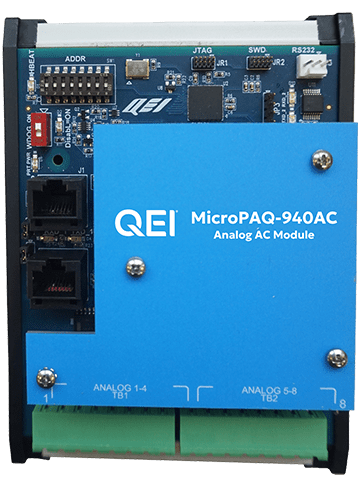

MicroPAQ-940AC

Analog AC Module

The MicroPAQ-940DC is a microprocessor-controlled expansion module for the MicroPAQ-940P and ePAQ-9410/20/25, providing up to eight DC Analog Inputs.
